Installation
Let's learn how to install Cerberus
Hello, this is the BEPRO team.
In this article, we will learn how to install Cerberus onto a high-stand tripod or quadpod for filming at a stadium.

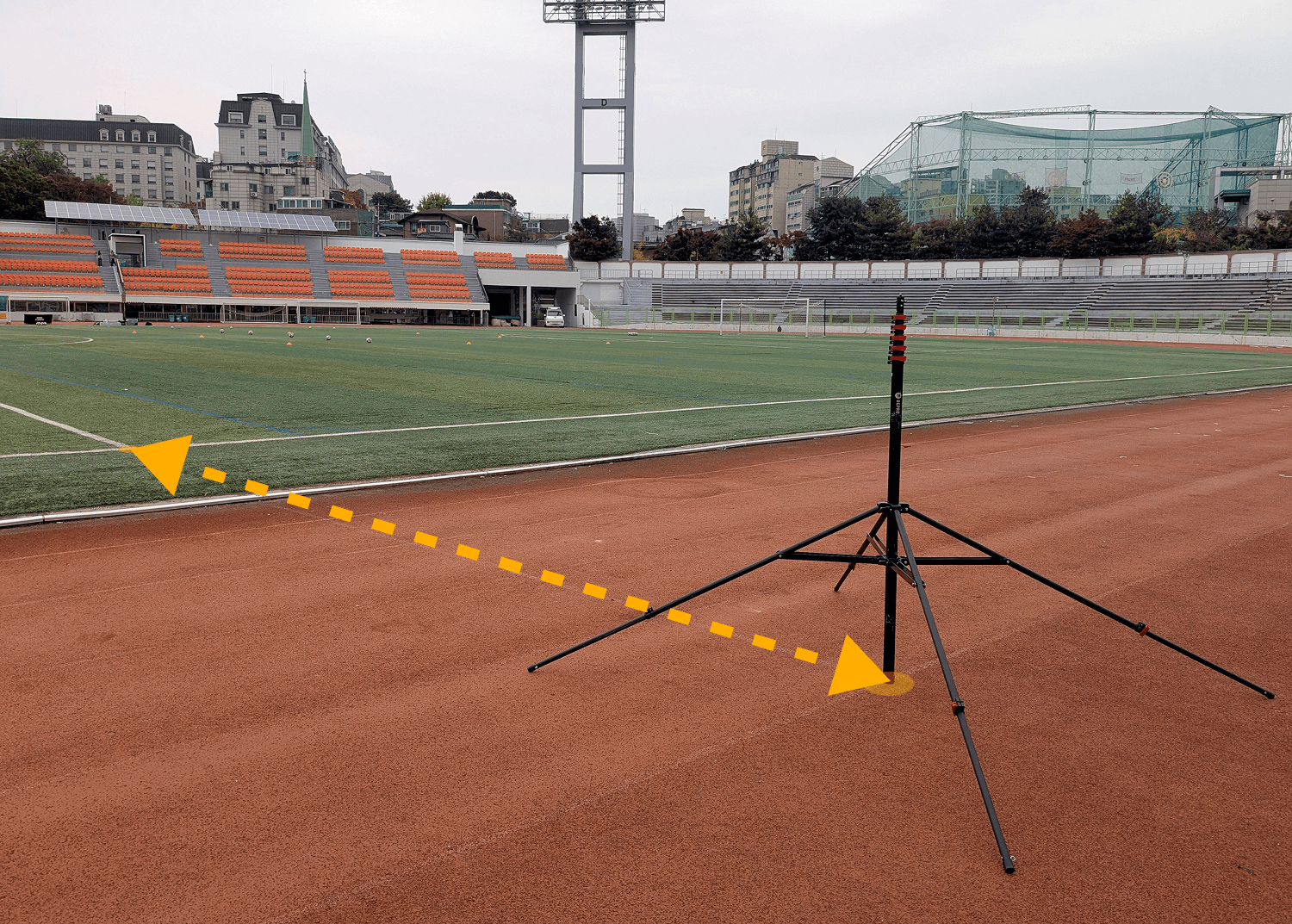

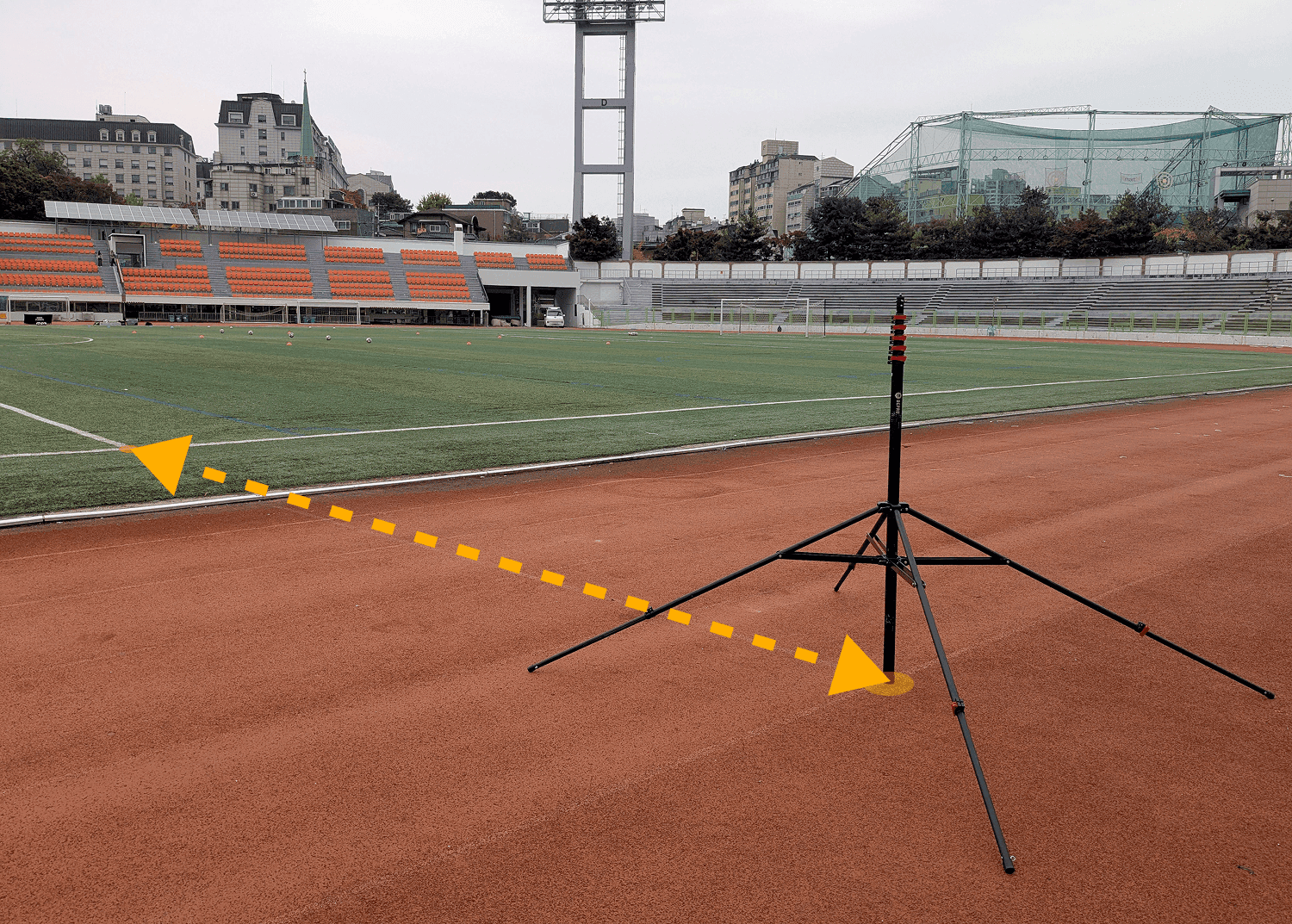

1. Positioning
To capture the entire pitch on a single screen, you must first find an appropriate location to install Cerberus.
The distance should be at least 2m away from the centre line, and we recommend a distance of 6–7m. Once you have chosen an appropriate location, unfold your tripod or quadpod.

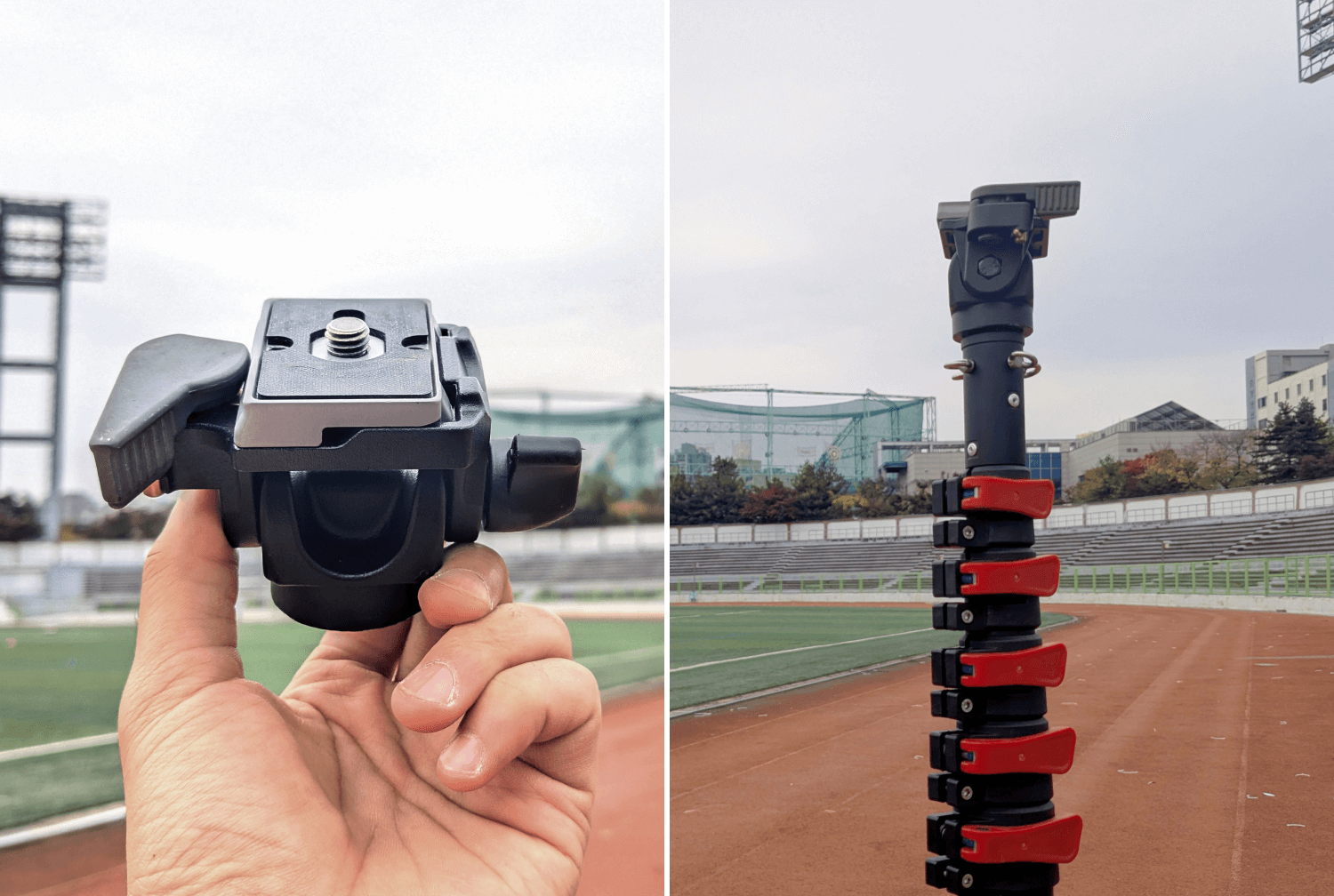

2. Mount Installation
After setting up the tripod or stand, you will need to install Cerberus on top of it.
First, however, install the vertical angle adjustment mount that comes with Cerberus onto your tripod or quadpod.

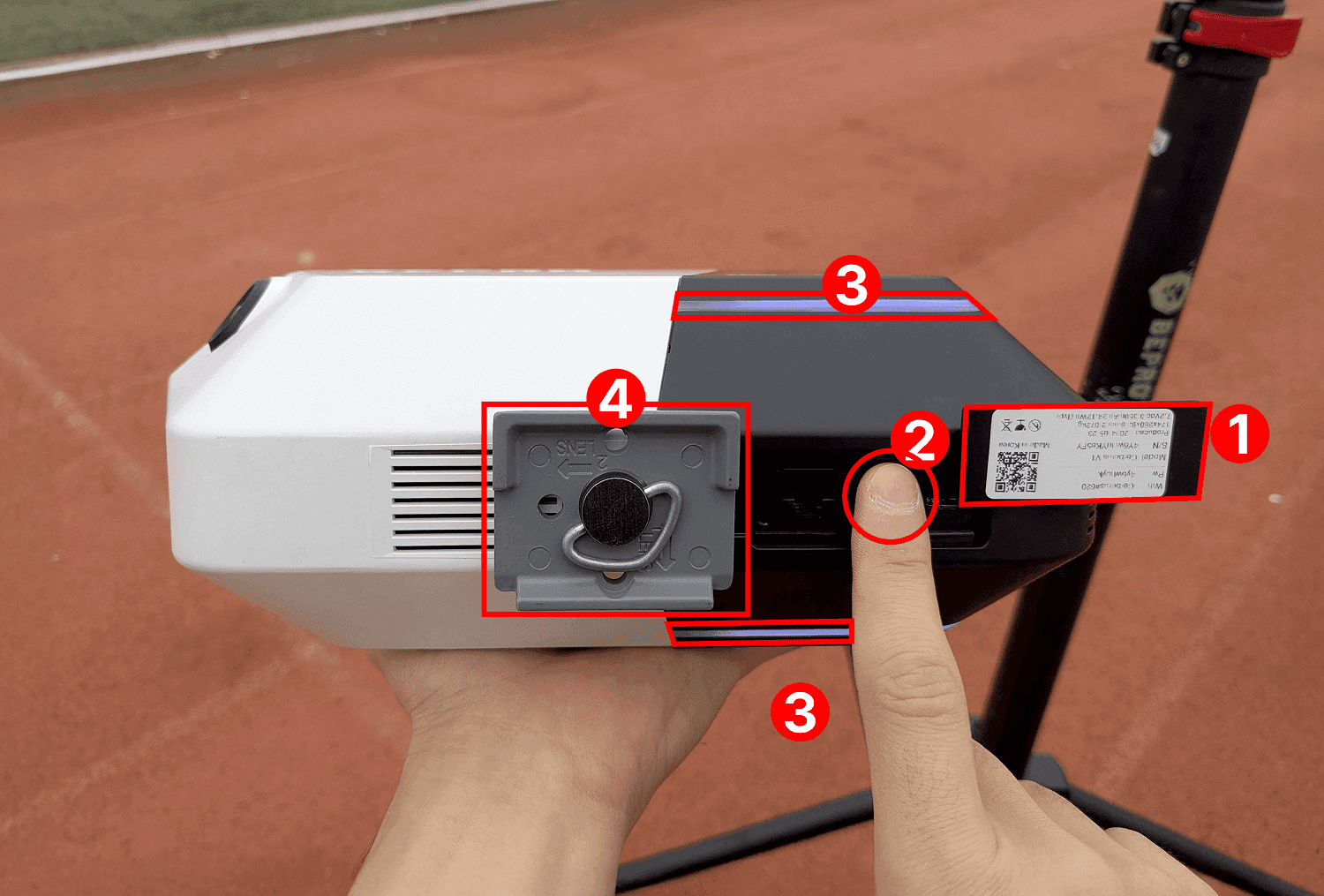

3. Powering On
Before installing Cerberus on the tripod or stand, you must first power it on.
Open the bottom lead on Cerberus.
Press the power button for 3 seconds to turn on the power.
Wait approximately 10 seconds until a white light appears on the LED.
To place Cerberus on the tripod or stand, attach the quick release on the mount to Cerberus.

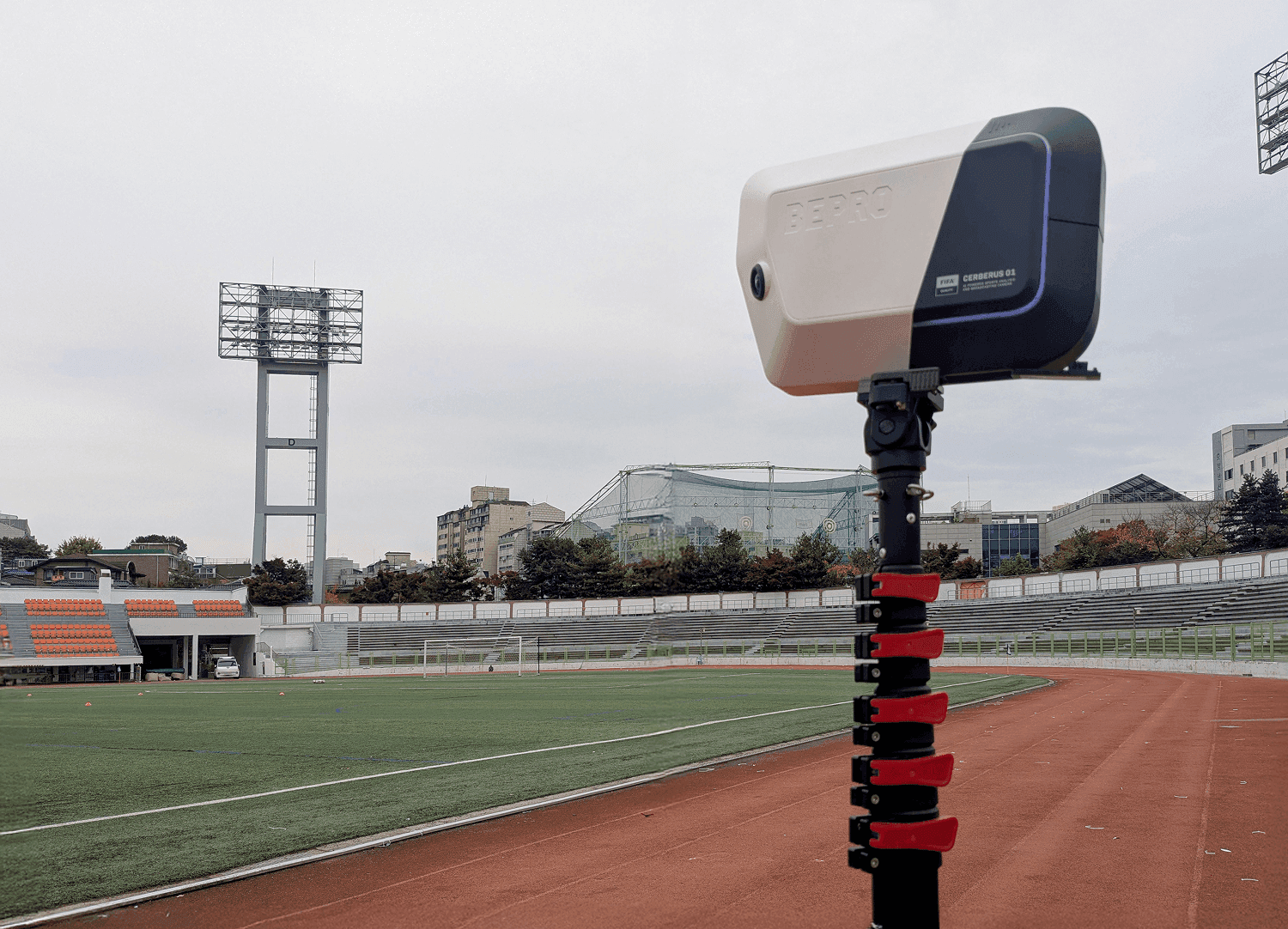

4. Cerberus Installation
Your Cerberus installation is now complete.
In the next article, we will learn how to connect Cerberus to your mobile phone.
