Angle Setting

Hello, this is the BEPRO team!

In this article, we will learn how to set the optimal camera angle for match filming.

Before adjusting the height of the tripod or Quadpod on which Cerberus is installed, you must first connect Cerberus to your mobile phone and launch the Cerberus controller.

For information on how to connect Cerberus to your mobile phone, please refer to the article below.

Mobile Connection

‍

‍

‍

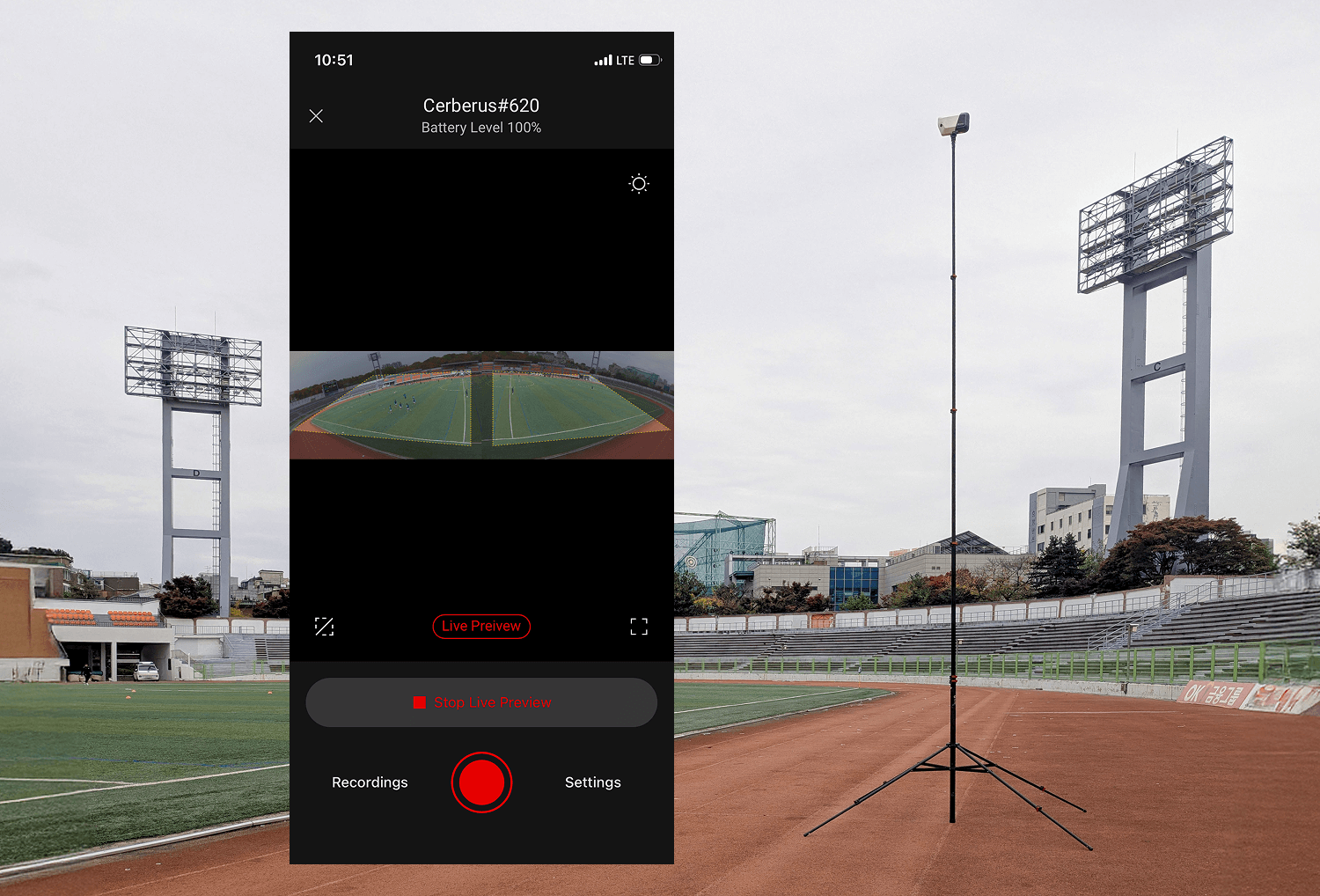

Adjust the height of the tripod or Quadpod on which Cerberus is installed as needed, and use the live preview in the Cerberus controller to confirm that the pitch is correctly positioned within the guidelines.

Please also note the following points.

‍

‍

Both sides of the pitch must be included

‍

‍

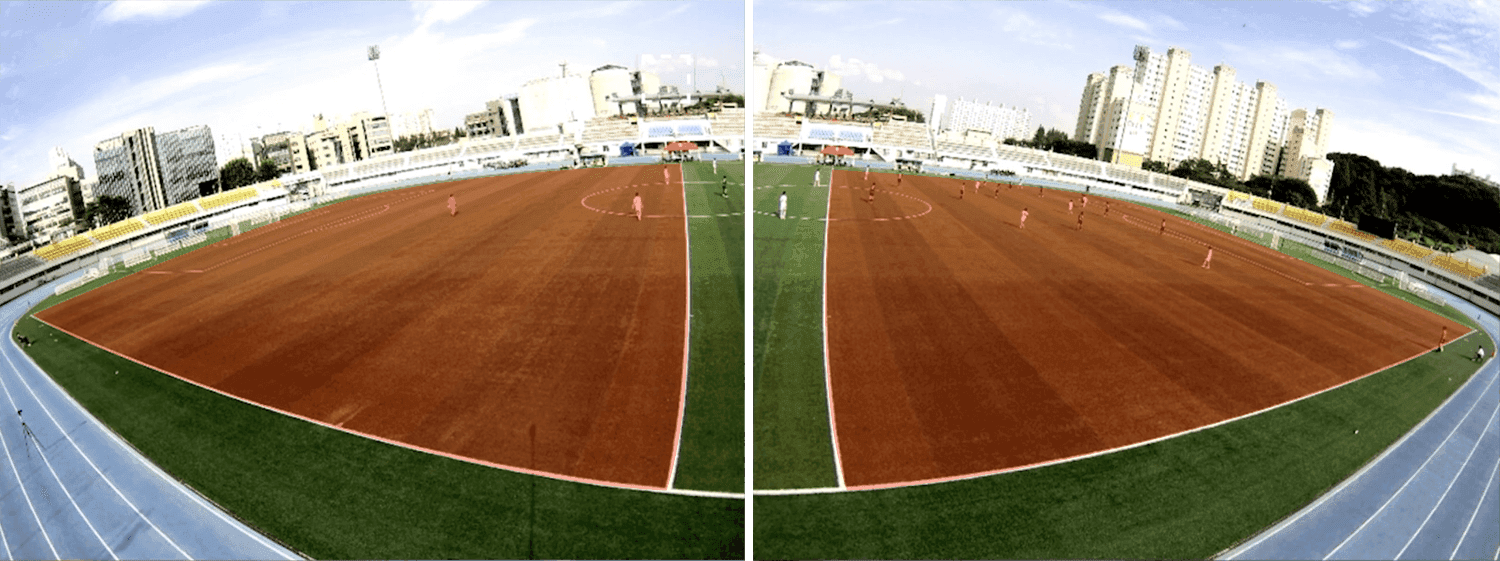

Cerberus uses two cameras, and the screen from each camera appears separately in the live preview.

At this point, please confirm that at least half of the pitch is visible on each camera.

‍

‍

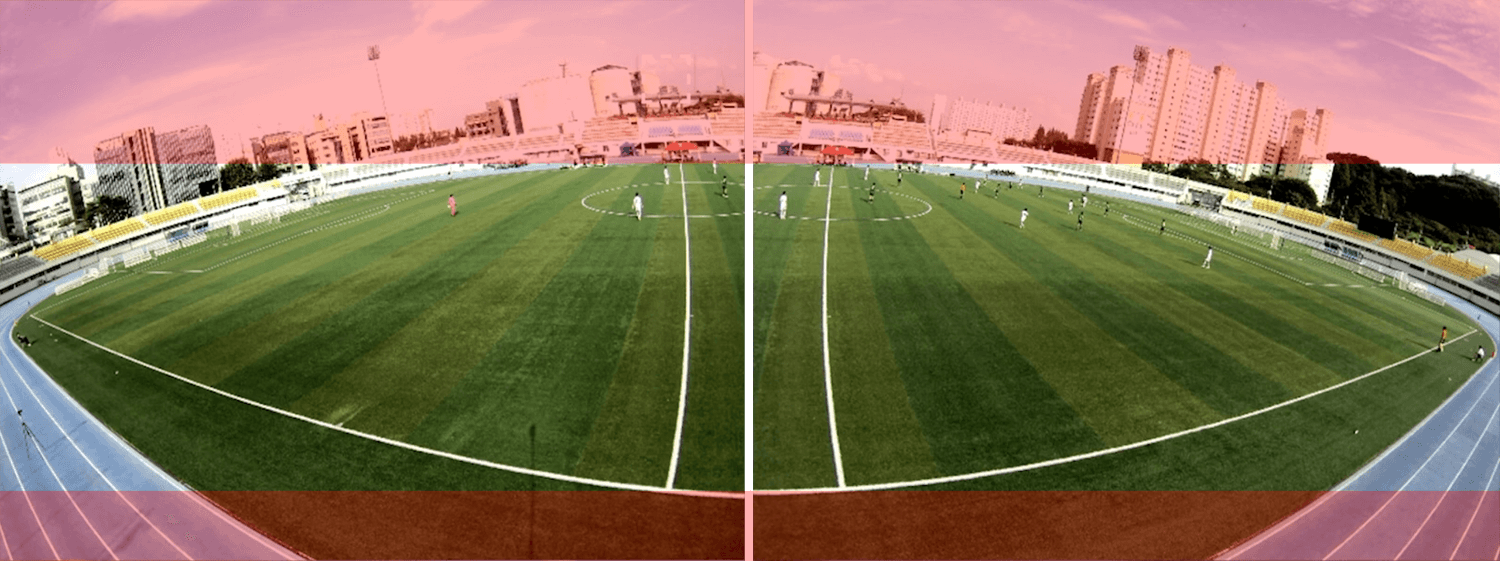

Allow more space at the top than at the bottom

‍

‍

Adjust the Cerberus angle so that the area above the pitch line occupies a larger space than the area below it.

With this setting, when you watch the match using the 3D video player in BEPRO Space after filming, you will have an optimal watching experience.

‍
